Product details
Brand: Meshnology
Model Name: ESP32 LoRa V3 Development Board
CPU Speed: 240 MHz
Connectivity Technology: Bluetooth, LoRa, Wi-Fi
Included Components: 2 Set (ESP32 Lora Board + Antenna + Battery + Case)
About this item
Advanced ESP32-S3 Microcontroller for Versatile Applications: Featuring the powerful ESP32-S3FN8 32-bit LX7 dual-core processor, this ESP32 development board offers a clock speed of up to 240 MHz. It is equipped with integrated WiFi, LoRa, and Bluetooth 5 (LE) capabilities, making it ideal for IoT projects such as smart cities, wireless meter reading, and home automation. Ideal for meshtastic devices and compatible with Arduino development environments.
High-Performance SX1262 LoRa Node Chip with Excellent Range: Powered by the SX1262 LoRa node chip, this board delivers exceptional performance with a transmit power of 21dBm and a sensitivity of -134dBm, while RF shielding prevents interference. Perfect for long-range communication applications like LoRaWAN and wireless sensor networks. Comes with both 915MHz antennas for versatile use.

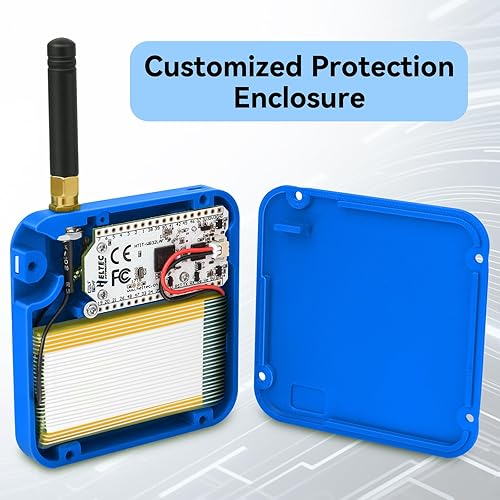

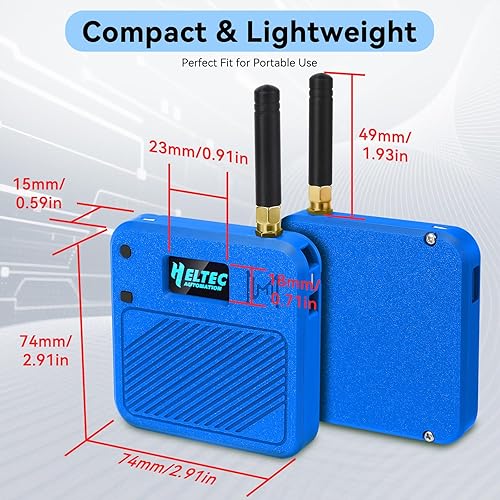

Customised Enclosure for Enhanced Protection: The included N32 blue shell is specifically designed to house your LoRa V3 ESP32 development board, battery, and antennas. With precise cutouts for the display, buttons, charging port, and antenna, this case ensures a snug fit while offering robust protection. Durable and lightweight, it’s perfect for field deployments or DIY projects.
Reliable Power Solution with Built-In Battery Management: Equipped with a high-quality 3000mAh lithium battery featuring a built-in protection circuit to prevent overcharging, over-discharging, overcurrent, overheating, and short circuits. The board also includes an integrated Li-ion battery management system with USB/battery power auto-switching and real-time battery level monitoring via the OLED display.
User-Friendly Interface and Rich Peripheral Resources: This ESP32 LoRa board comes with a Type-C USB interface, two 1.25mm battery connectors, and a reserved U.FL connector for external LoRa antennas. Additionally, it features a 0.96-inch OLED display, multiple ADCs, touch sensors, UARTs, I2C, SPI interfaces, and supports 2102 USB-to-serial conversion for easy programming and debugging.
