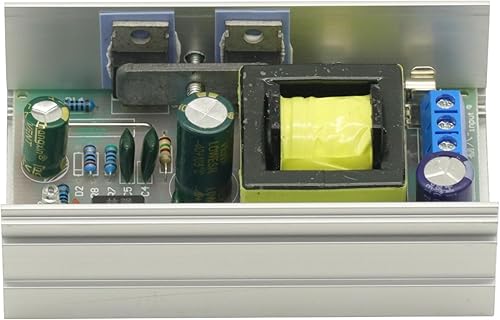

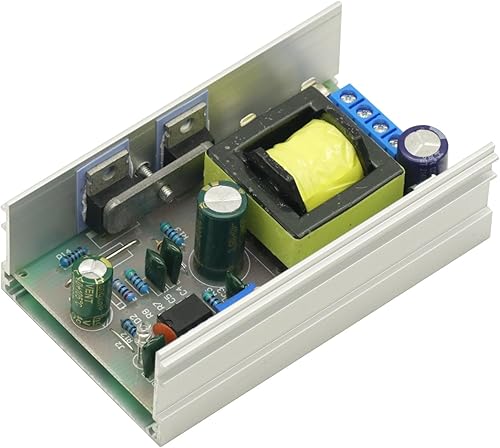

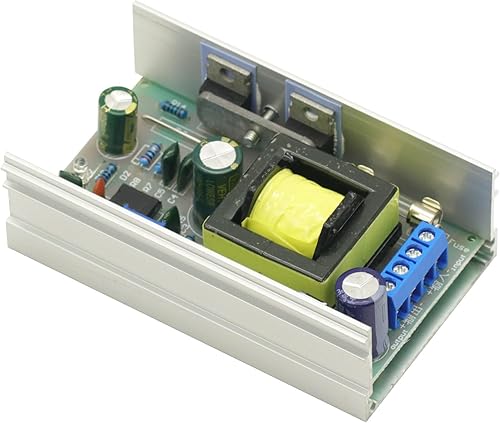

    DC-DC 12V 24V to DC 200-450V 220V 380V High Voltage Boost Converter Step Up Power Supply Module Adjustable Output Voltage

    $15.99

    🌸 Cute & Stylish Hair Accessories

    🚚 Free Shipping on $15.99        📦 Ships in 3–5 Days

    🔍 Carefully Inspected          💫 21-Day Returns

    Product details

  • Brand: GODIYMODULES
  • Power Source: Battery Powered
  • Mounting Type: Rack Mount
  • Current Rating: 7 Amps
  • Specification Met: CE, RoHS, UL

    • About this item

  • This is a DC convert with a huge output voltage of DC 450V. this module is amazing, when the input voltage is not stable, the output will be stable. this is a non-isolated converter
  • Input: DC 9-24V Lowest starting voltage: 8.4V
  • Output: adjustable DC 220V-450V (MAX 450V the output voltage is stable even the input voltage is changing)
  • Power: 40W continuously working, it can reach 70W occational working. lnput voltage is lowered, the output power will drop, the input voltage increases, the output power increases, but does not affect the output voltage.
  • Recommand power supply for the converter: DC 12V lead-acid battery or 3/4-series of 18650 batteries, which can provide a current over 7A.
  • Undervoltage protection: yes. when the input is less than 7.6V, the voltage will not be boosting Reverse connection protection: yes Indicator: the led will be on when the charging is finished Charging time: to charge 1000UF capacitance to 450V, it will take about 5 seconds Notice: when the power is big, the assurance may burn, you need to change to get the module back to work.
