Compatible Processors: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Chipset Type: Intel B760
Platform: Windows 11
Model Name: PRO B760M-P
Memory Storage Capacity: 192 GB
Main Power Connector Type: 24-Pin, 20-Pin
About this item

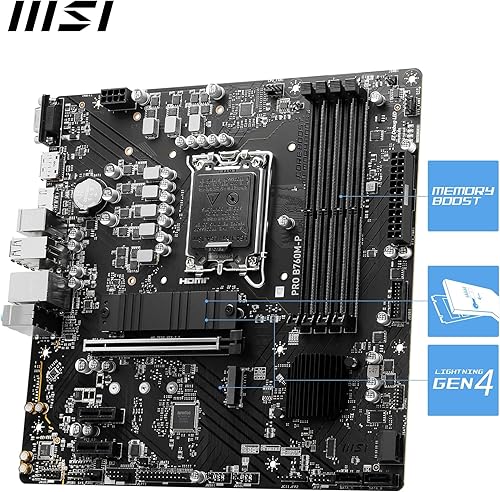

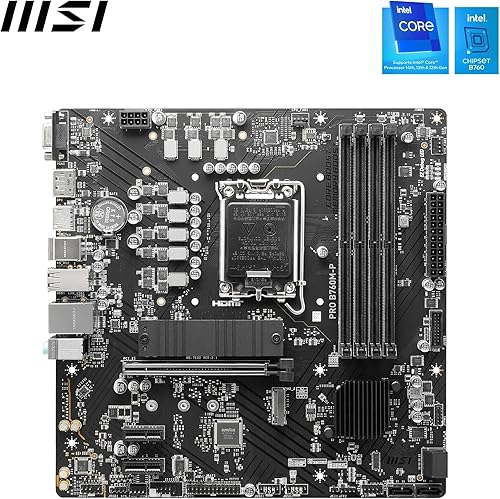

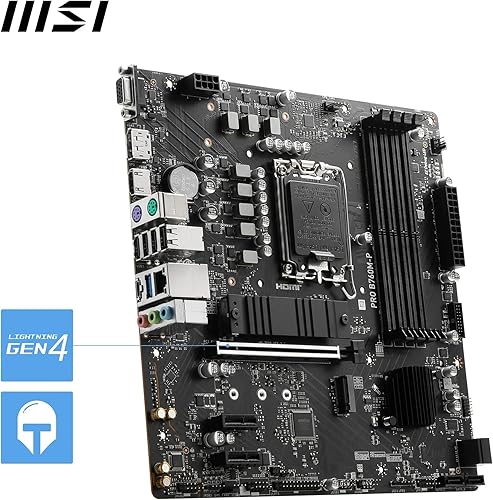

14TH, 13TH & 12TH GEN CORE - The PRO B760M-P is a compact Micro-ATX motherboard outfitted with the latest Intel B760 chipset (LGA 1700, 14th, 13th & 12th Gen); The VRM features MSI Core Boost technology for improved stability & performance
PASSIVE & AI COOLING - A chipset heatsinks provide passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
DDR5 MEMORY, PCIe 4.0 x16 SLOT - 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6800+ MHz); Primary PCIe x16 slot supports PCIe 4.0 (64GB/s) and includes Steel Armor
DUAL M.2 CONNECTORS - Storage options include 2 x M.2 Gen4 x4 64Gbps slots; The primary M.2 slot includes Shield Frozr to prevent thermal throttling during hyper-fast SSD access
WELL CONNECTED - Network hardware includes a 1Gbps LAN controller; Rear ports include USB 3.2 Gen 2 Type-C (10Gbps), USB 3.2 Gen 1 Type-A (5Gbps), HDMI 1.4, DisplayPort 1.4 and VGA, and 7.1 HD Audio with Audio Boost
